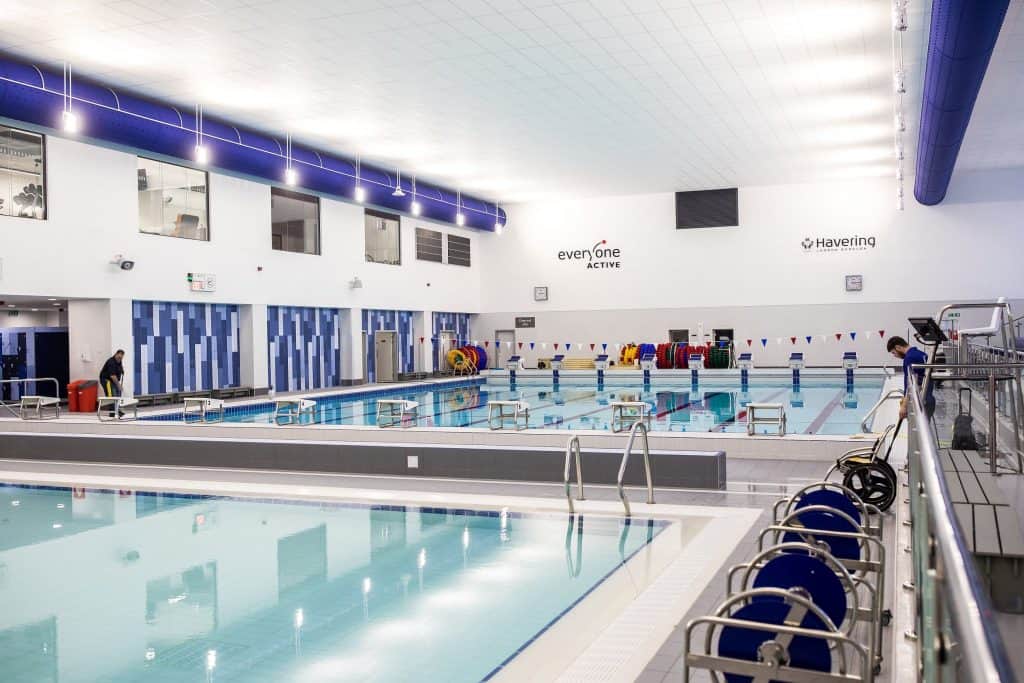

When Sapphire Ice & Leisure opened in Romford, Essex earlier this year, it became the UK’s first example of an ice rink built directly above a heated swimming pool. In building design and construction terms, creating neighbours of two such opposing climates posed unique and complex technical challenges.
This was an especially unusual project in that it was so large and complex that its scope spanned at least two entirely separate instances of research & development (R&D). In this unique turn of events, ForrestBrown was able to help two firms receive a financial boost in return for their innovation.
Saunders Boston Architects are a Cambridge-based firm of architects with a speciality in designing swimming pools. Kershaw Mechanical Services are a mechanical and electrical engineering building services company based in Cambridge.
What does R&D in the construction sector look like?
This particular construction project was Havering Council’s largest single investment (£28m) in a borough-wide improvement programme. Work began in 2013 when Saunders Boston were briefed to design a building that would include a 25 metre, 8-lane swimming pool and separate learner pool, fitness and dance studios, a National Standard ice rink and spectator seating throughout.
Find out more about R&D in the construction sector
The Cambridge-based architects didn’t have the luxury of a large plot of land, which would have permitted designs for a pool hall and ice rink side-by-side. Instead, the plot was a more restricted space in the heart of Romford, so the initial challenge was to find a way of fitting two facilities with fixed, regulated sizes into this limited build space.
Read more on R&D tax credits for architect practices
The solution took minutes to arrive on, but months to analyse the implications and prove it would work. Normally you would just have a roof over a pool. But it was quickly apparent that this would not work here. And it would have been even more crackers to try and do it the other way round with the swimming pool above – the structural challenges of trying to hold up that big tank of water. That said, I don’t think it has ever been done like this before. Not the whole project.
John Blair, Chairman, Saunders Boston
A ‘floating’ ice rink meant the primary supporting structure needed to span over 25 meters, with the final 2 meters being a cantilever – which added further complication. A complex floor build-up, which included a pre-finished metal deck to act as a high-density vapour barrier, insulation and two layers of concrete, was used and the whole floor was supported by one metre-deep beams which spanned all the way across. These beams ultimately had to be craned in over a busy highway and spliced together in-situ.
The architects also sought to reduce pool glare through a bespoke cladding system, which would need to complement whichever solution for temperature control was decided on.
Heating, ventilation and air-conditioning (HVAC) can qualify for R&D too
With the working concept agreed on, several technical challenges had to be addressed. The priority was to ensure that the two markedly different climates – warm and cold – could exist as adjacent floors. The condensation risk needed to be analysed in detail, and specialists were enlisted to crunch the numbers.
Kershaw understood from the ice rink contractor what environmental conditions were required. And there were very tight parameters for temperature and humidity control.
The pool room would naturally be very humid, and air temperature must be maintained at three to four degrees above that of the pool. Above it, the ice rink would need to stay cool and dry, but still have enough humidity for the ice to remain slippery.
Further complications were posed by the changing outdoor climate. In winter, the drier air means humidity must be introduced to the ice rink to achieve the desired ‘slipperiness’, while the more humid summer air would melt the ice too far if not controlled.
Our solution took about a year to design using our in-house expertise and external consultants. It involved major plant rooms for the specialist equipment for the two internal environments and one external environment. We used software modelling to explore how heat transfer and cold bridging would be controlled.
Gary Smith, MD, Kershaw
